"MERLYN’S" MULTI-PURPOSE ANCHOR  BOLT

(MMBOLTS)



This page tell you first about the fixing and how it works

And then explains how

Black & Decker RIPPED ME OFF



A   REVOLUTIONARY   NEW   CONCEPT    IN

ANCHOR   BOLT   TECHNOLOGY

MMBolts are truly multi-purpose, heavy or light duty anchors

that CAN give you a fixing in:-

ALL CONCRETE - LATAG CONCRETE - STONE - BRICK

ALL BLOCK WORK - AND EVEN WOOD



ALSO giving the following benefits:



* Variable Embedment Depth

* Non-corrosive properties

* Inbuilt Security Applications

* Superior Tensile loading (up to 5T !)

* Superior shear loading

* Anti-vibration properties

* Huge Financial savings



HOW CAN SOMETHING SO SMALL AND SIMPLE

BE SO STRONG AND EFFECTIVE



 (ACTUALLY)



IT's THE UNIQUE INTERACTION DESIGNED

TO TAKE PLACE BETWEEN

ALL THE COMPONENTS

AND THE HOST MATERIAL

THAT MAKES

MMBOLT THE MOST

TECHNOLOGICALLY   ADVANCED

ANCHOR  BOLT  YET  DEVELOPED











MMBOLTs

REALLY    DO WORK

IN  HOLLOW POT  FLOORS INDEPENDENT

DESTRUCTION TESTS DESTROY THE CONCRETE AT 1.5 TON AV. NOT THE MMBOLT



MMBOLTs

REALLY DO WORK IN HOLLOW BLOCKWORK

VARIATIONS IN BLOCKS & STRENGTHS MAKE LOADINGS IMPOSSIBLE TO QUANTIFY



MMBOLTs

REALLY DO WORK

AS A CHEAP SECURITY DETERRENT

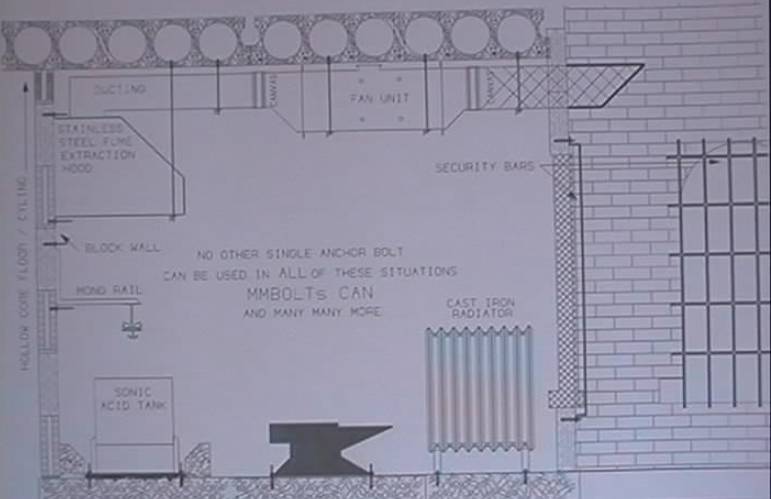

NO  OTHER SINGLE ANCHOR BOLT CAN BE USED IN ALL OF THESE SITUATIONS

MMBoltS   CAN







MBolt





1

AT LAST   AN ANCHOR BOLT RECOMMENDED  TO BE USED IN HOLLOW CORE FLOORS AND MMBolts  ARE  CHEAP ENOUGH TO BE USED AS A LIGHTWEIGHT FIXING WITH THE FULL BENEFITS OF A HEAVY DUTY ONE AND EXTREMELY VERSATILE.

INDEPENDENT TESTS BY LAING TECHNOLOGY GROUP LTD PRODUCED AVERAGE FATAL LOADINGS ON 35mm LONG 8mm MMBOLTs OF 1.5 TONs.

THE MMBolt FIXINGS DON‘T FAIL BUT 75Kn CONCRETE FAILED IN A CONE

2

PLASTIC SLEEVES CAN EASILY BE CUT TO THE LENGTH NEEDED (max 60mm) AND USING ONE METAL SLEEVE ON TOP  EXTENDING THROUGH WORK PIECE  GIVES AN 8mm MMBolt THE SHEAR LOADINGS OF A 16mm THROUGH BOLT.

3

UNLIKE OTHER ANCHOR BOLTS MMBolts DON‘T WASTE EXPENSIVE HEAVY DUTY FIXINGS IN LOW DUTY SITUATIONS.

4

IT IS COMMON IN FACTORIES FOR A DAMAGED FLOOR TO BE SCREEDED WITH AN EXTRA LAYER OF CONCRETE. THIS NORMALLY CREATES GREAT PROBLEMS IN GAINING A GOOD FIXING WITH MMBolt ITs NOT A PROBLEM.

WITH THE ADDITION OF TWO PLASTIC OR RUBBER WASHERS, ABOVE AND BELOW AN EFFECTIVE ANTI-VIBRATION UNIT IS ALSO ACHIEVED

5

USED WITH HIGH TENSILE BOLT PRE-SETTING MMBOLT WASHERS WITH DRIFT (THREE SLEEVES DEEP (90mm) WITH ADDED METAL SHEAR SLEEVE MMBoltS BECOME A VERY HIGH PERFORMANCE HIGH STRENGTH ANCHOR BOLT.

AN INDEPENDENT TEST BROKE AN 8mm 12.5 SET PIN AT 5.4 TONS

THE MMBOLT STAYED INTACT IN THE 30Kn LYTAG CONCRETE

6

SECURITY PROBLEMS  ?         AFTER THE BURGLAR BARS HAVE BEEN FITTED IN THE NORMAL WAY, TAKE OFF THE RETAINING NUT AND ADD AN EXTRA REINFORCING WASHER, WHEN THE NUT IS RE-TIGHTENED THE REINFORCING WASHER IS FLATTENED LOCKING IT ONTO THE THREAD OF THE BOLT,

NOW YOU HAVE A CHEAP SECOND LINE OF DEFENCE TO MAKE IT MORE DIFFICULT FOR THE WOULD BE INTRUDER



7

An 8mm MMBolt IS AS STRONG AS A CONVENTIONAL 12mm ANCHOR BOLT   AND BECAUSE THERE ARE SO  MANY WAYS OF USING THE UNIQUE MMBolt COMPONENTS IN  CONJUNCTION WITH STANDARD  ALLTHREAD - BOLTS - CAP SCREWS - NUTS - WASHERS - ETC

(all in varying lengths, strengths, or in stainless)

We supply MBOLT in Kits





Black & Decker RIPPED ME OFF



In November 1990 I arranged to demonstrate the power of MMBolts to Tucker fasteners (Black&Decker) in their test centre in B-ham, I was prepared to put a number of my fixings into a piece of their test concrete and allow them to apply a lethal load and note the better strength without them examining them. But was then informed by Basil D.P.Wetters EMHART INC. (B&Ds parent company & patent lawyers) that I would have to file a patent application before they would sanction a demonstration. I made it clear that even if I spent a lot of money with a patent agent, I was not confidant that a patent application made by me would fully cover the unique invention. They told me that it would not matter because if they liked what they saw they would want to enter into an agreement and they would be able to alter the application later and anyway I could then do a proper demo and give them a copy of my patent application.



IN HINDSIGHT I FELL FOR IT



And on the 7/1/1991  1000hrs I was at Tuckers test centre when my son filed the application in London and phoned me on the mobile (I had one of the first, a big heavy thing).  I then gave them a copy of the patent application and we did some tests.

It was agreed that MMBolts proved to be 50% stronger and they said it would take 2/3 years to bring into production and should take 25% of the world market but it will take a few weeks to evaluate and work out the best strategy.







Now it was coming to the end of the GULF WAR with Saddam Hussein threatening to blow up the oil wells and I had in the principle of MMBolts a method to put out the oil well fires and put into operation DESERT CALM KUWAIT.

(see enclosed pages and see why I lost £10k on the project)



It was eventually 6/8/1991 when an agreement was signed by Mr B.J. McGinity managing director Tucker Fasteners B&D, & me

the main points being



An upfront non-returnable payment of £15k providing that £7.5k would be deducted from the first royalties

3% royalty to me for 10 years from the first sale

I had to assign  the patent to EMHART INC. Delaware (US) and leave the development and world patenting to them.



Well if you haven’t got your calculator out yet I will do it for you but you first need the last part of the equation and that is the world market for heavy duty anchor bolts was  around £500m py.

So 25% of £500m=£125m

3% of £125m= a royalty to me each year of

£3.125.000.00

(Three million one hundred & twenty five thousand pounds)

PER YEAR for 10 years



I again volunteered to help develop the product but my offer was declined

“We are experts and have an R&D place in France run by Robber (Robert) Anquetin”

a Frenchman.

With £15k in my pocket and a signed agreement I retired from being a ductwork erector and invited Colin to become my partner and we set about

INVENTING “THINGS” (that’s another few stories)



Keeping this story short, two years later I was informed by the NEW managing director of Tucker Fasteners that he had a memo from France saying that

“MMBolt tests gave negative results”

(I obtained a copy and still have that memo it is signed by R.Anquetin)

I had a meeting in Bham with him and his own staff pointed out that they had done the first tests with good results.  I arranged to re-do the tests with my improved MMBolts and I videoed the tests again at their test centre and now gained 75% stronger results. A month later they conceded the results but declined to continue with the agreement contending that the market place had changed and MMBolts would not fit into their product range now.



WHAT DO YOU THINK HAPPENED NEXT?





Well I have a copy of a patent published 18/11/93

priority date 13/05/92

Application number 93303571.9

Applicant EMHART INC. Delaware (US)



Inventor Anquetin Robert Paul

15 Rue Jean-Sabastien Bach Etrechy,Essonne (FR)

Representative Mr Basil D.P.Wetters EMHART Patent Department



And would you believe it “The basic concept of MMBolts is an integral part of it”

 Yes you can believe it THE B******s

It did NOT infringe my patent (well it wouldn’t WOULD IT) - They re-wrote it

The worst is, that this DERIVATIVE was never produced because it was too elaborate and costly to mass produce. (see infringements at Inventorstoday.org)



I made Tucker keep up the patents for a time and set about manufacturing  myself!

That’s another lesson & story.

If you would like me to write it sooner please contact me and request it because it is taking me a long time to sort through all the papers to make sure the facts are correct and you can believe it all. I have the proof.

I have little or no chance of redress other than putting the facts on the WWW and hope that a Lawyer wants to take it up on a no win no fee basis

At least it could Enlighten other potential victims to stay away from



ANY F****** B*******

LIKE

BLACK&DECKER
