Hot GlassBlowing Studio Equipment For Sale

Equipment Prices. Well, that's a difficult one

We custom build what you NEED not necessarily what you THINK you want so costs can vary.

You can get an idea of the cost of standard equipment as you view this site because most units are priced.

Affordable running costs are the most important aspects of any business as it can make or break the business. Our glass making, re-heating and annealing equipment will pay for itself in about 18 months, giving you continuous fuel efficient savings. From then on this energy efficient, economical equipment will keep your money in your bank.

Other providers may offer cheaper options which might appear to be better initially, but over time these offers turn out to be vastly more expensive in terms of cost, time and convenience. Why waste your hard earned money on a gas guzzler when you can have the best.

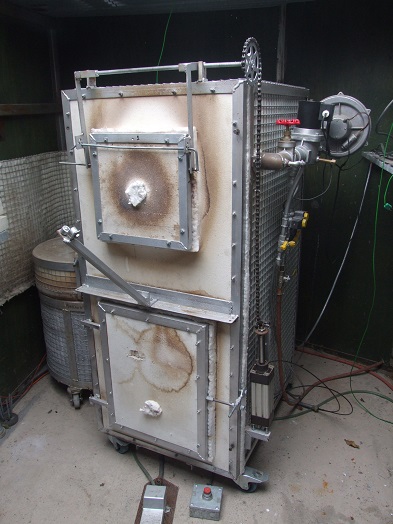

This is a prototype small but complete Combo glass making plant which has been in use for the past 12 months and is designed to be turned on and off as required The unit has a low fire/high fire burner system controlled by a pneumatic  gloryhole / furnace door Roll your Cursor Over The Image This unit consists of a gloryhole with a trough pot inside for melting the glass. The quality of the glass is fair, but I have an idea how to improve it too good if not great, Need to produce some new moulds.   The lehr or Annealing Oven is 16"x19"x21" internal with a manual door Roll your Cursor Over The Image   The whole front of the unit is a door designed for ease of maintenance Roll your Cursor Over The Image Dependent in the size you require prices range from £8,000 to £12,000 but the important thing about the Combo is the fuel efficiency Because our gloryholes are so energy efficient, there is little or no benefit in incorporating a recuperation unit. However, by implementing cunning design we have been able to use the waste heat from the gloryhole to power the lehr all day and then use an electric element to anneal overnight. Studio Glass Furnace Combo. 1 - 47kg LPG gas bottle will last for 9 days i.e 4.7kg per day The cost of LPG is roughly £1.50 per kg so a working day of 8 hours will cost £7.05 aprox

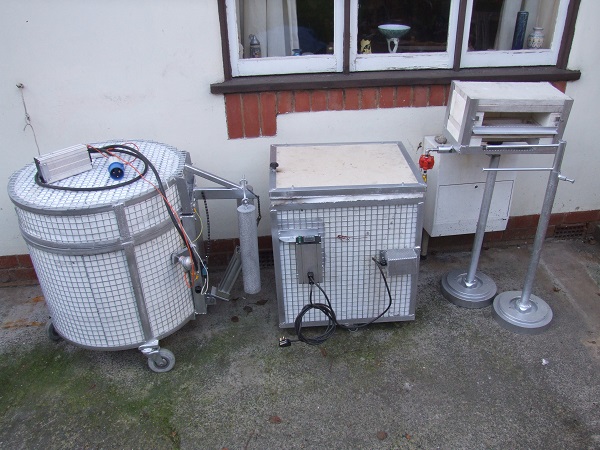

20kg Round Electric Furnace £5.000.00 -  Large electric Lehr £3.750.00  -  Ventury Iron Warmer £900.00

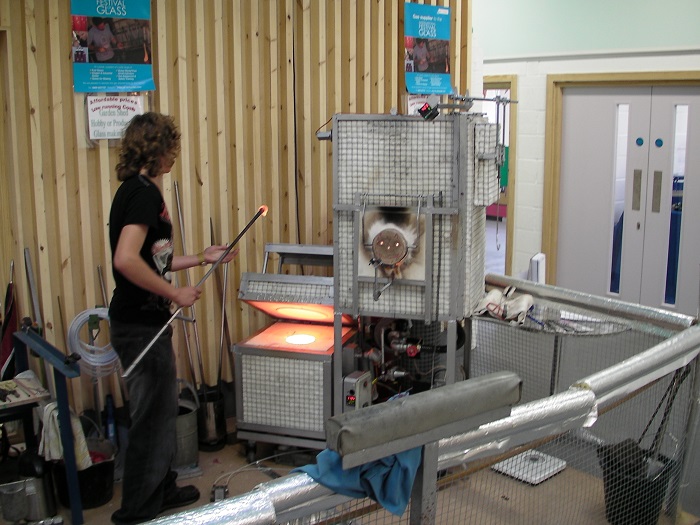

Energy Efficient Gloryhole Lehr Combo - separate 10kg Electric Pot Furnace produces top quality glass   Complete Set £11,500 Because our gloryholes are so energy efficient, there is little or no benefit in incorporating a recuperation unit. However, by implementing cunning design we have been able to use the waste heat from the gloryhole to power the lehr all day and then use an electric element to anneal overnight.







Energy Efficient Small 9" High Fire/Low Fire GloryHole  £3.500.00 Roll your Cursor Over The Image  Cost when door closed 12p Per Hour     Door Open 75p Per Hour Not only saves money but cooler and quieter studio
Our low fire/high fire gloryholes are designed to be energy efficient, Now having developed a brand new super insulating “Castable”, together with modern high temperature fibre blanket, we uniquely achieve what can only be described as dramatic cost savings compared to conventional glassmaking gloryholes. Both 87% more energy efficient than typical Gloryholes.
Large 12" High Fire/Low Fire Gloryhole £4.500.00 Roll your Cursor Over The Image  Cost when door closed 19p Per Hr      Door Open 95p Per Hr

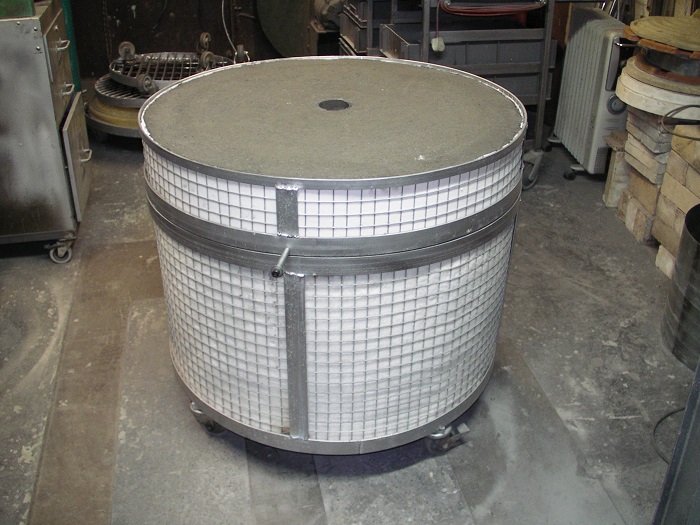

Roll your Cursor Over Image Showing Wire Element   Electrical energy is costly. When we use electrical energy in a furnace it costs more BUT you use less because there are NO waste gases and it’s easier, cleaner and more controllable.  Using our super insulating “Castable” in the furnace, together with modern high temperature fibre blanket, it becomes cost effective and the furnace costs less to make and maintain. 50kg Round Electric Studio Glass Pot Furnace, Foot Opening Pneumatic Lid Vertex Electronic Programmer £6,000

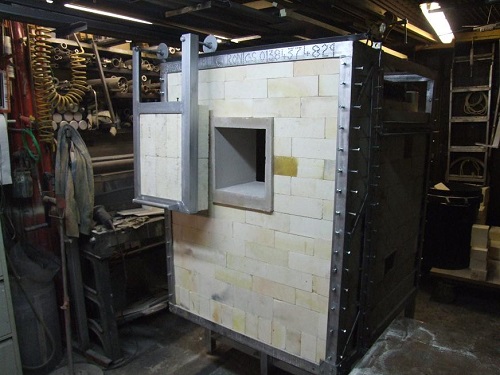

Roll your Cursor Over The Image 50 kg Gas Glass Pot Furnace This furnace was made in two sections for access and easy pot change £18,000
